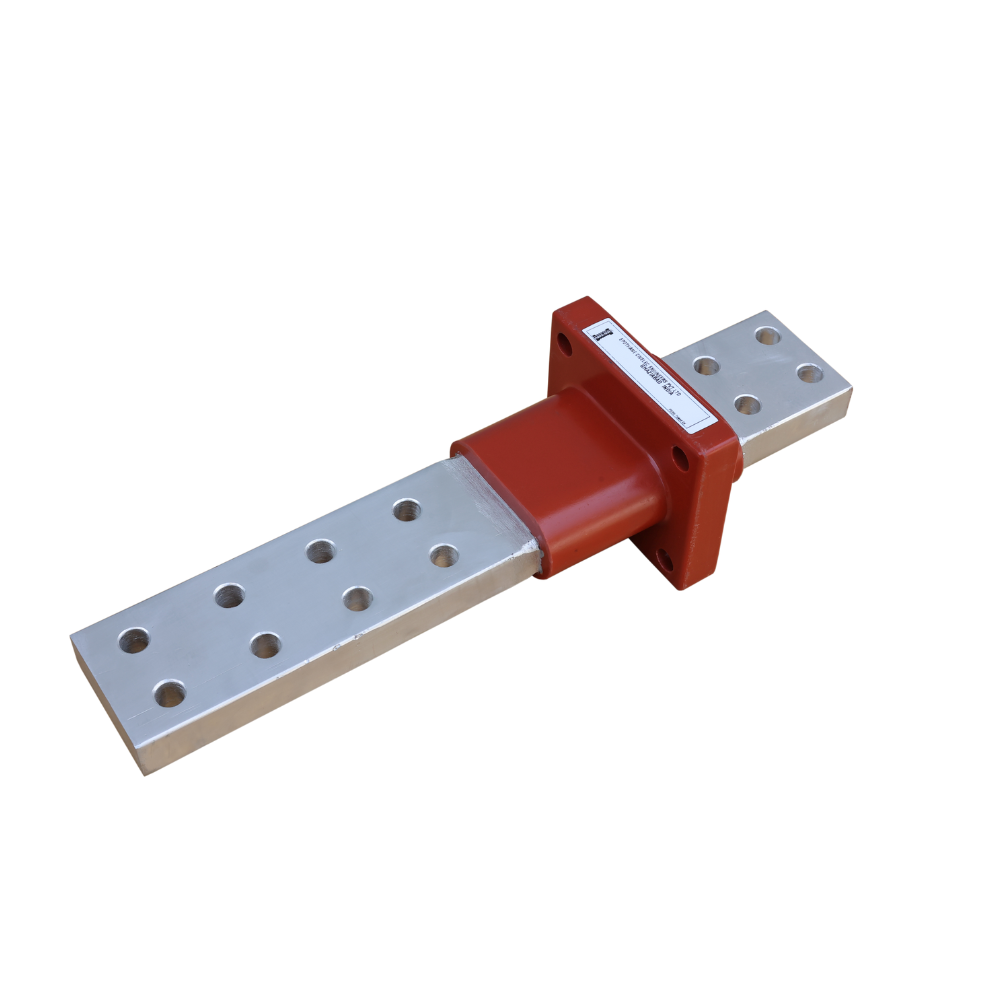

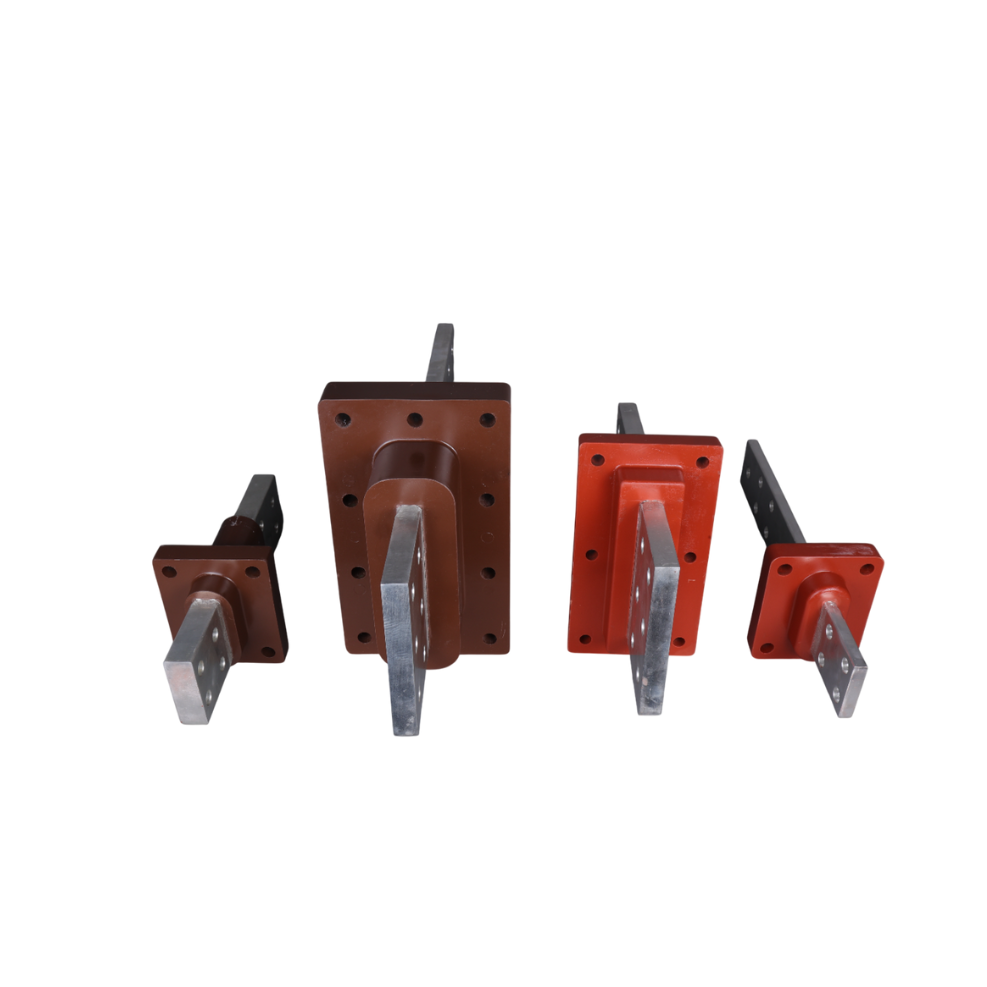

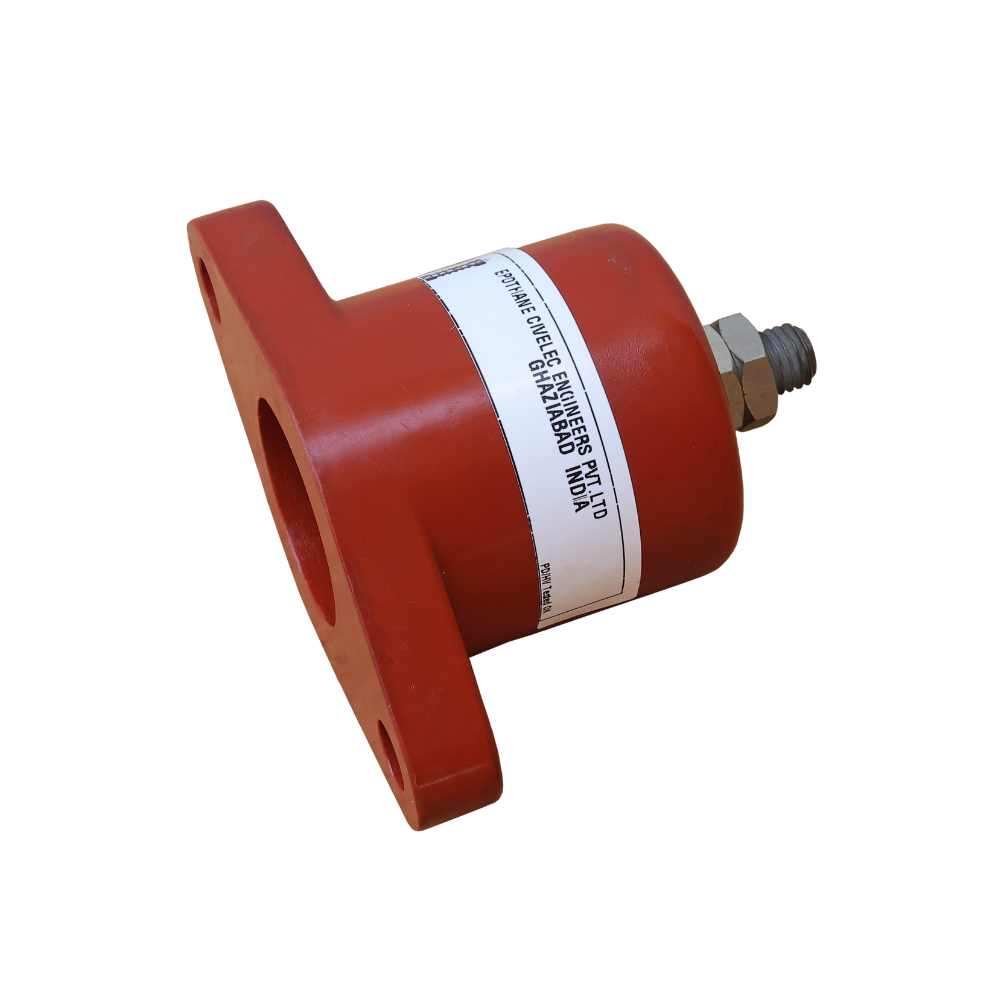

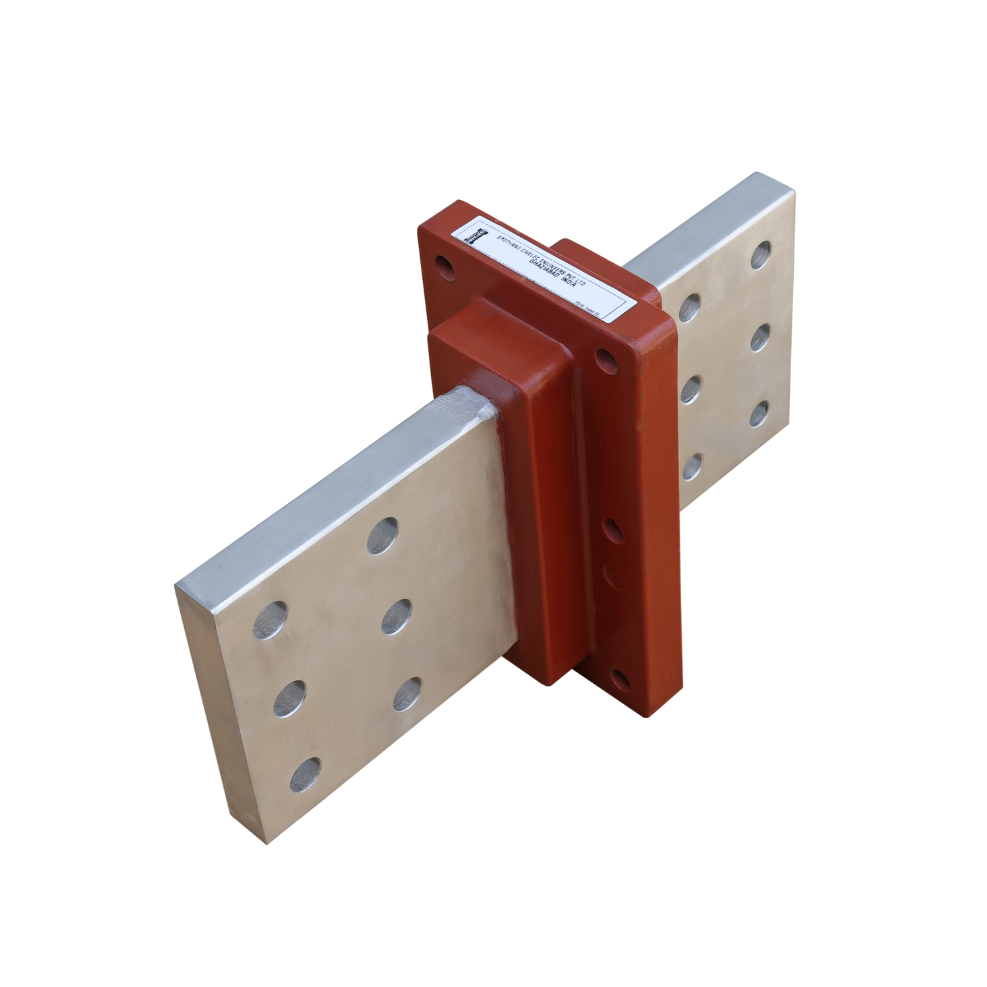

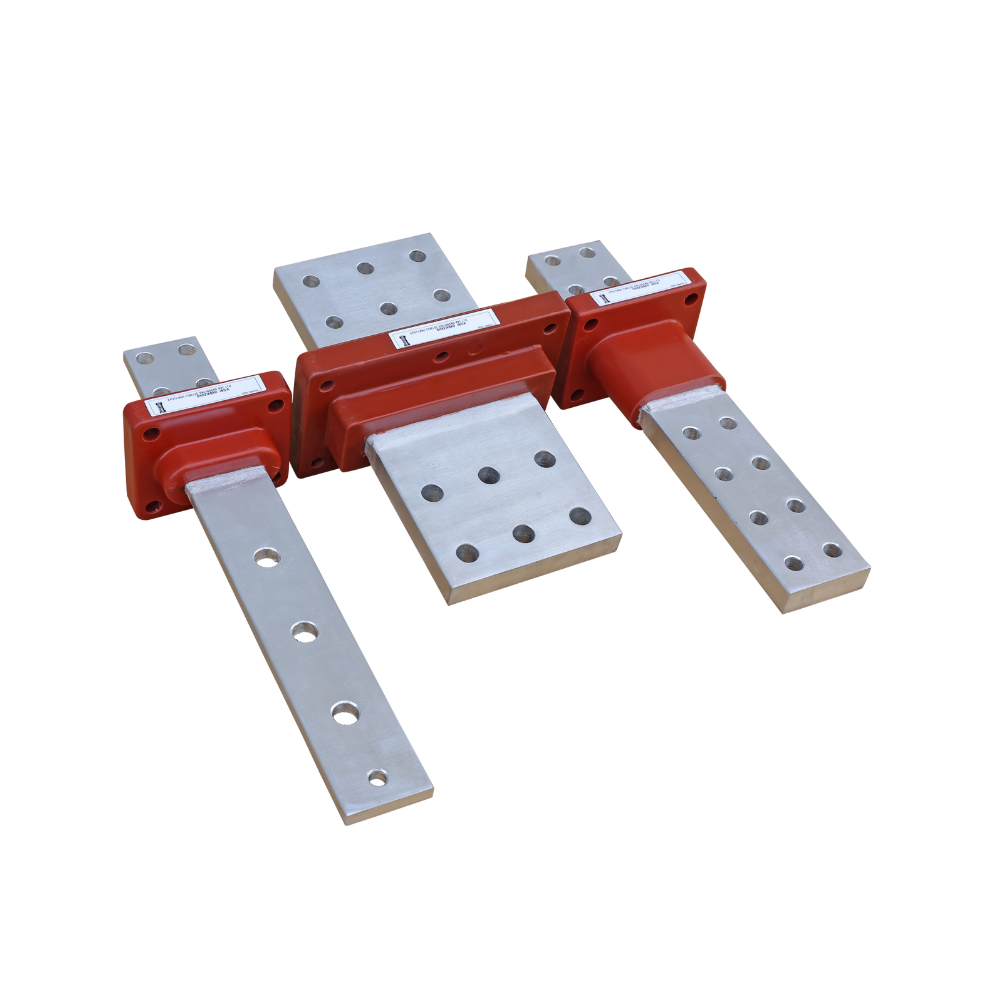

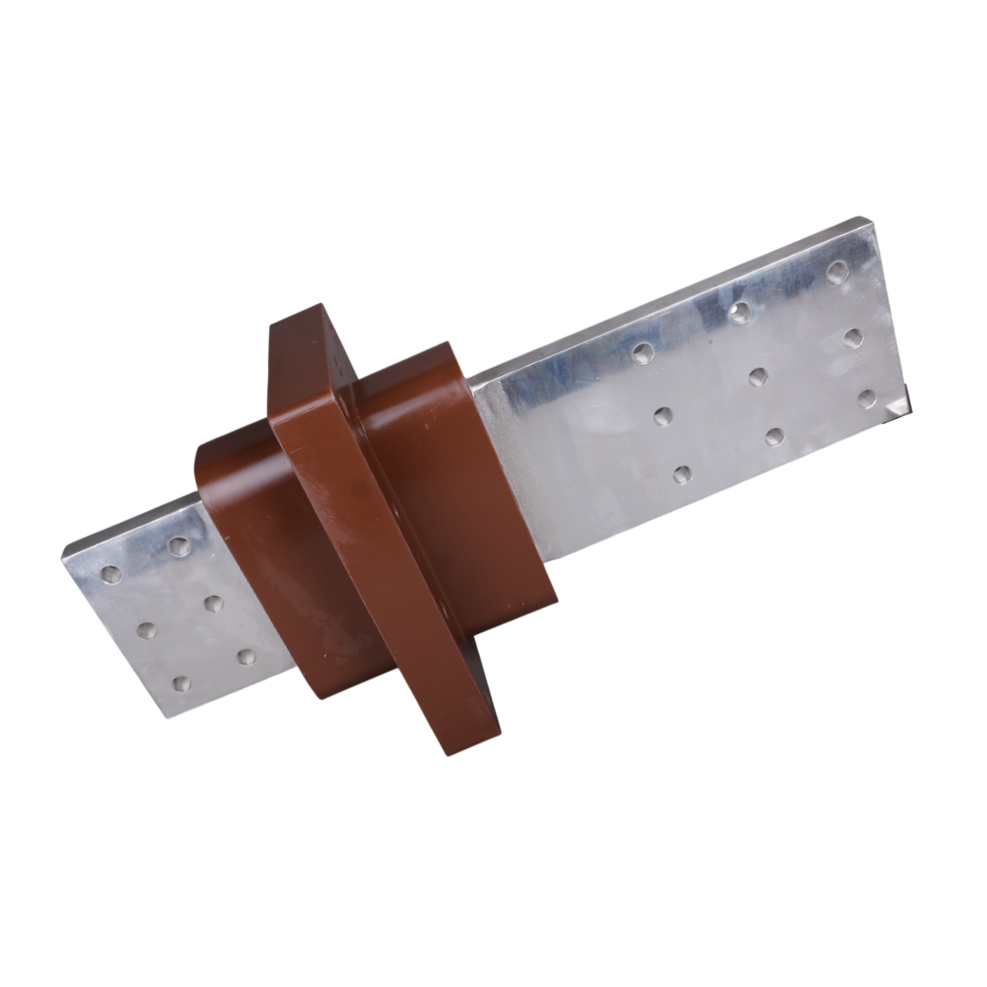

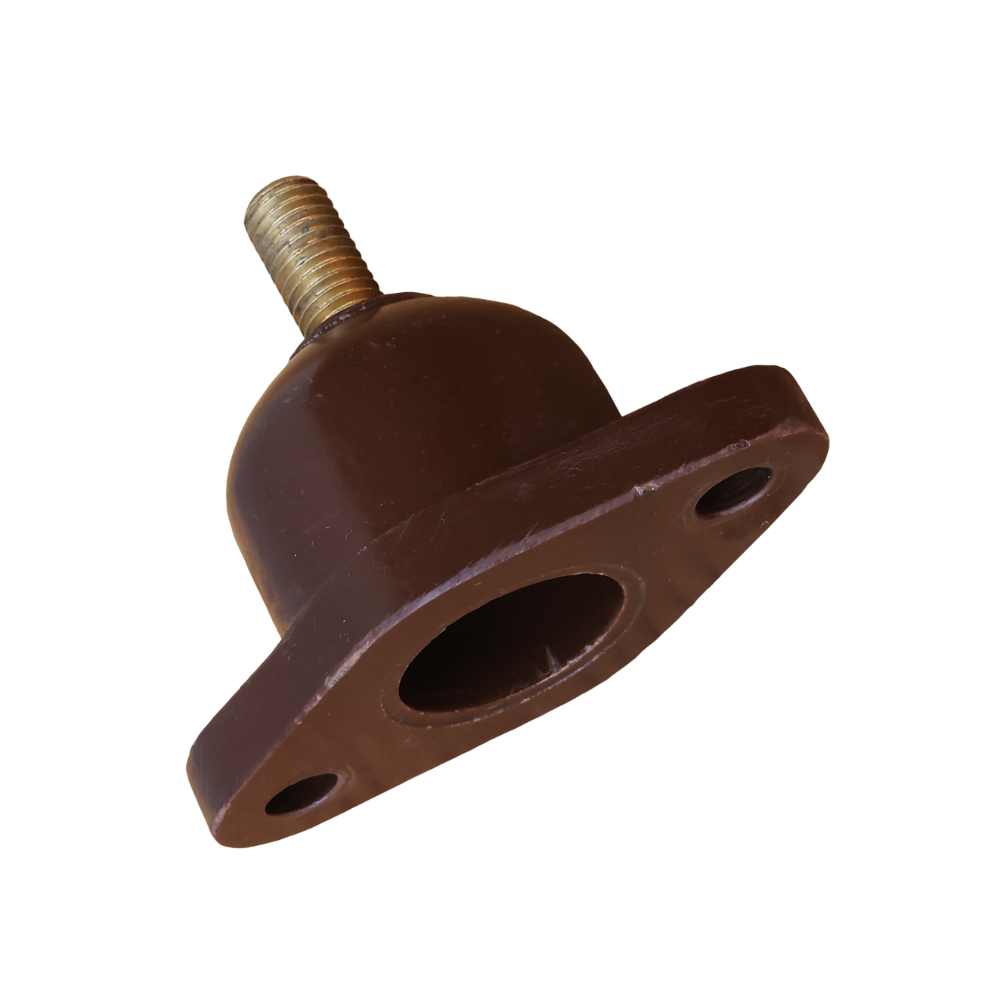

Epoxy Cast LV Bushing
We have a wide variety of epoxy cast LV Bushings for Transformers for customized requirement of all our valued customers. All these epoxy bushings are type tested at NABL Accredited Laboratory and if required can be type tested again for customized requirement.
All our bushings easily withstood all material test applicable viz. Flammability Test / Water Absorption Test / Tracking Index Test
| S.No | Specification | Range Available |
|---|---|---|
|
1. |
Voltage Class |
1.1KV to 3.3 KV |
|
2. |
Current Rating |
630 A to 10500 A |
|
3. |
Partial Discharge |
< 10Pc |
|
4. |
Application |
Both Indoor & Outdoor |
|
5. |
Color |
Brick Red / Chocolate Brown |
|
6. |
Creepage Distance |
31mm/KV |
|
7. |
Insulation Suitability |
Air to Oil |
|
8. |
Conductors Electroplating |
Tin & Silver |
|
9. |
Helium Leak Test |
Leakage < 10^-7mbarlit/sec |
|
10. |
Thermal Stability Test |
Upto 120 Degree Celcius |
